The HT201-48 series SFP transceiver supports dual data-rate of 2.5Gbps and from 2km to 120km transmission distance with MMF or SMF.
The HT201-48 series transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
All HT201-48 series modules satisfy class I laser safety requirements. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault indicates that degradation of the laser. Loss of signal (LOS) output indicates the loss of an input optical signal of receiver.
The standard serial ID information compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial bus. For more information, please refer to SFP Multi-Source Agreement (MSA)
技術參數：
2.5G SFP TRANSCEIVERS
|
Part Number
|
Model No.
|
|
Data Rate(Mbps)
|
Wavelength
|
Media Type
|
Reach
|
TX Power(dBm)
|
RX Sens.(dBm)
|
Temp.(℃)
|
Note
|
|
HT201-48-083M0.55D
|
2.5G-SFP-SX
|
|
2.5G
|
850nm
|
Duplex LC
|
550m
|
-10~-3dBm
|
-18dBm
|
0°C~70°C -40°C~+85°C
|
MMF
|
|
HT201-48-033S02D
|
2.5G-SFP-LX-2
|
|
2.5G
|
1310nm
|
Duplex LC
|
2km
|
-9~-3dBm
|
-18dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-033S20D
|
2.5G-SFP-LX
|
|
2.5G
|
1310nm
|
Duplex LC
|
20km
|
-5~0dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-053S20D
|
2.5G-SFP-LX+
|
|
2.5G
|
1550nm
|
Duplex LC
|
20km
|
-5~0dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-033S40D
|
2.5G-SFP-LX-40
|
|
2.5G
|
1310nm
|
Duplex LC
|
40km
|
-2~+3dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-053S40D
|
2.5G-SFP-EX
|
|
2.5G
|
1550nm
|
Duplex LC
|
40km
|
-2~+3dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-053S80D
|
2.5G-SFP-ZX
|
|
2.5G
|
1550nm
|
Duplex LC
|
80km
|
0~+5dBm
|
-26dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-053S100D
|
2.5G-SFP-ZX-100
|
|
2.5G
|
1550nm
|
Duplex LC
|
100km
|
0~+5dBm
|
-30dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-053S120D
|
2.5G-SFP-ZX-120
|
|
2.5G
|
1550nm
|
Duplex LC
|
120km
|
0~+5dBm
|
-31dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
2.5G BIDI SFP TRANSCEIVERS
|
Part Number
|
Model No.
|
|
Data Rate(Mbps)
|
Wavelength
|
Media Type
|
Reach
|
TX Power(dBm)
|
RX Sens.(dBm)
|
Temp.(℃)
|
Note
|
|
HT201-48-35S02D/53S02D
|
2.5G-SFP-BD33-2
|
|
2.5G
|
1310Tx/1350Rx 1550Tx/1310Rx
|
Simplex LC
|
2km
|
-10~-3dBm
|
-18dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|

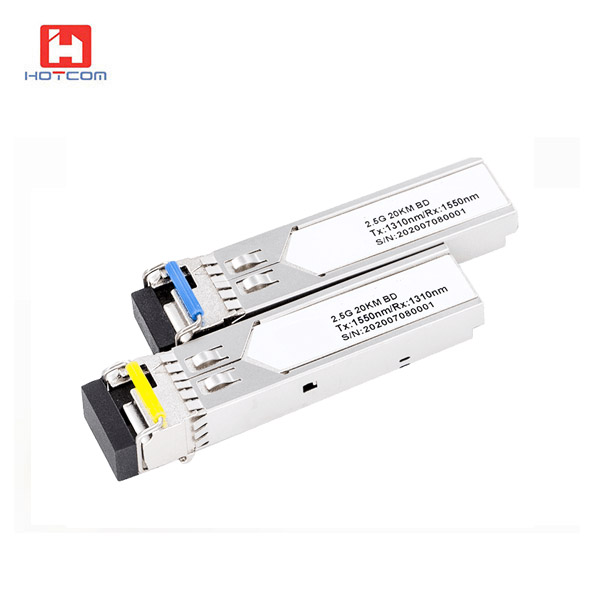

HT201-48-35S20D/53S20D
|
2.5G-SFP-BD35(53)-20
|
|
2.5G
|
1310Tx/1550Rx 1550Tx/1310Rx
|
Simplex LC
|
20km
|
-5~0dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-34S20D/43S20D
|
2.5G-SFP-BD34(43)-20
|
|
2.5G
|
1310Tx/1490Rx 1490Tx/1310Rx
|
Simplex LC
|
20km
|
-5~0dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-35S40D/53S40D
|
2.5G-SFP-BD35(53)-40
|
|
2.5G
|
1310Tx/1550Rx 1550Tx/1310Rx
|
Simplex LC
|
40km
|
-2~+3dBm
|
-19dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-34S40D/43S40D
|
2.5G-SFP-BD34(43)-40
|
|
2.5G
|
1310Tx/1490Rx 1490Tx/1310Rx
|
Simplex LC
|
40km
|
-2~+3dBm
|
-23dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-35S60D/53S60D
|
2.5G-SFP-BD35(53)-60
|
|
2.5G
|
1310Tx/1550Rx 1550Tx/1310Rx
|
Simplex LC
|
60km
|
-2~+3dBm
|
-24dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-34S60D/43S60D
|
2.5G-SFP-BD34(43)-60
|
|
2.5G
|
1310Tx/1490Rx 1490Tx/1310Rx
|
Simplex LC
|
60km
|
-2~+3dBm
|
-24dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
|
HT201-48-45S80D/54S80D
|
2.5G-SFP-BD45(54)-80
|
|
2.5G
|
1490Tx/1550Rx 1550Tx/1490Rx
|
Simplex LC
|
80km
|
-3~+3dBm
|
-24dBm
|
0°C~70°C -40°C~+85°C
|
SMF
|
● 2X/1X FC
● 1000Base Ethernet
● SDH/SONET
● Storage Area Network (SAN)
● Other Optical Link
