MPO/MTP高密度布線

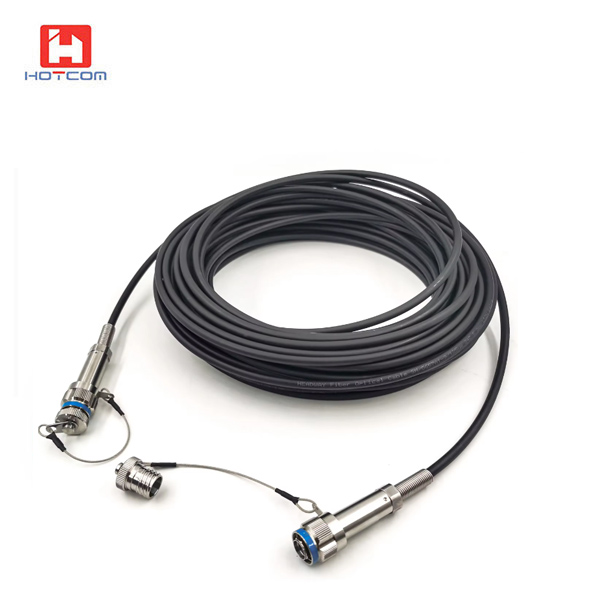

J599 MPO Tactical Optical Patch Cord
-Designed to meet 150 N cable retention;
-Designed to meet IP67;
-Adapter footprint : 36mm x 36mm;
-Bayonet style locking;
-Duplex LC interconnect MM or SM;
-No tools required;
-Operating temperature : -40 to +70 degree;
-Mating durability min : 100 cycles.
  • 產品描述
  • 產品參數
  • 應用方案
  • 資料下載
  • 關聯產品

J599 MPO fiber assemblies use J599 housing for MPO high density connector to be assembled with TPU jacket armored tactical 12 or 24fiber cable. The J599 shell, using 316L or aluminum alloy features with screw and five keys location to have fast blind connection.

The connector parts in small size are highly reliable to resist dust, water and anticorrosion, it is mainly used in harsh environment such as marine telecommunication and military telecom where are with Acid, alkali, moisture.

J599-MPO 12 & 24 cores for choice.

Technical specifications:

Insertion loss single mode ≤0.55dB
Multimode ≤0.75dB
Return loss single mode ≥55dB
Mechanical performance Plug ≤1000N
Socket ≤100N（branch cable）
Operating temperature -40℃～85℃
Protection level IP67

Cable diameter 5.0mm or others
Cable Jacket LSZH/ TPU
Tensile unit KEVLAR
Fiber Type 9/125、50/125、62.5/125
Fiber OD. 900um  tight set of fiber
Tensile strength Short term: ：1200 Long term：600N
Operating temperature -40℃～85℃


-WiMAX and LTE Base Stations;
-Remote Radio Heads (RRH);
-Industrial outdoor applications;
-Robotics;
-Aerospace & Defense.
