光纖入戶解決方案|OLT,ONU,以太網交換機POE交換機生產商|深圳市鴻騰光電有限公司

三層管理交換機
16千兆光8光電復用口4萬兆上聯三層交換機
-4個萬兆光口上聯,16個千兆光口+8個千兆光電復用下行口,1*RJ45控制臺接口用于交換機基本管理和設置。
-三層路由功能:支持靜態和動態路由、RIP、OSPF、BGP4、ECMP、VRRP。
-端口聚合:支持GE端口,2.5GE和10GE端口聚合,靜態和動態聚合
-VLAN:支持接入、卡車、混合模式和VLAN分類,包括基于Mac的VLAN、基于IP的VLAN和基于協議的VLAN。
-QinQ:支持基于端口、基于VLAN和基于流量的QinQ
-端口鏡像:多對一的端口鏡像
-二層環網協議:支持STP、RSTP、MSTP、G.8032 ERPS協議、單環、子環
-多路廣播:支持IGMP V1,V2,V3和IGMP snooping。
-QoS:QoS等級、備注、支持SP、WRR隊列調度、基于入口/出口端口的速率限制和基于策略的QoS。
-安全性:支持Dot1x,端口認證,mac認證,RADIUS服務;支持端口安全,ip source guard,IP/Port/MAC綁定,arp-check和ARP包過濾,用于非法用戶和端口隔離
-管理:支持LLDP,用戶管理和登錄認證;SNMPV1/V2C/V3;Web管理,HTTP1.1,HTTPS;Syslog;RMON(遠程監控)報警、事件和歷史記錄;NTP、溫度監控;Ping、Tracert和光收發DDM功能;支持TFTP客戶端、Telnet服務器、SSH服務器和IPv6管理。
-通過Web GUI、FTP和TFTP進行固件更新、配置備份/恢復
  • 產品描述
  • 產品參數

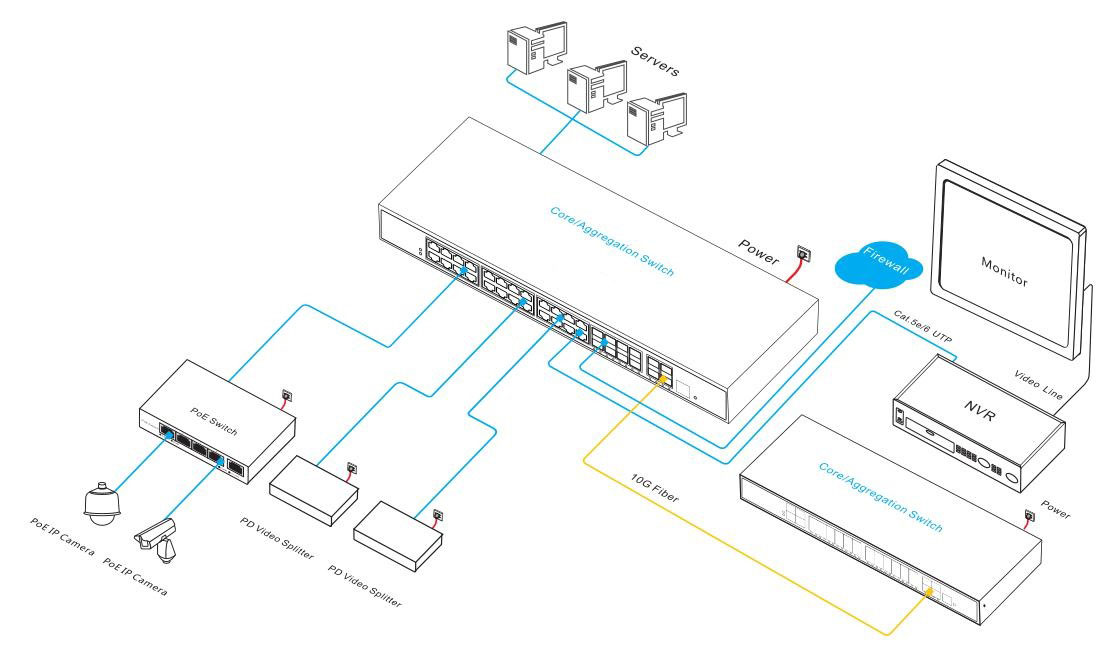

  • 應用方案
  • 資料下載
  • 關聯產品

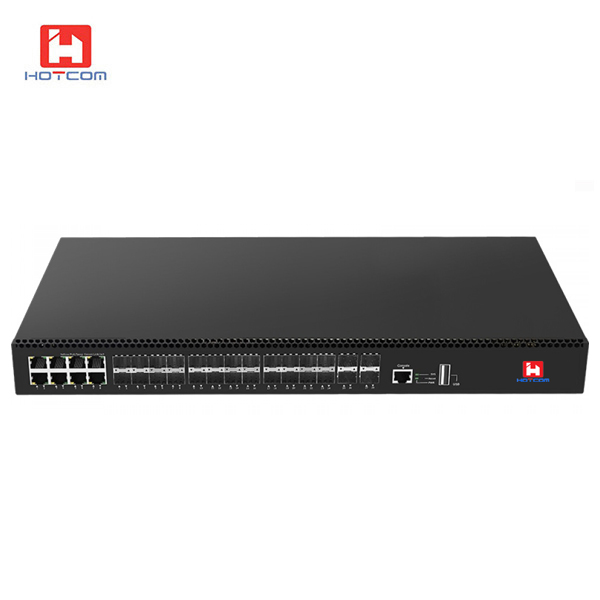

HT3316GX-GC8-TF4三層管理型交換機專為中小型企業(SMEs),大型企業和 Internet 服務提供商(ISPs)設計。 它們具有高性能,靈活性,容錯能力和先進的軟件功能,可實現最大的投資回報。HT3316GX-GC8-TF4 交換機具有千兆以太網 RJ45 和 SFP 端口,10GbESFP +端口,高級安全功能和高級服務質量(QoS),可用作核心,分布或接入層交換機,具有高端口密度,交換機堆疊和易管理性,是各種商業網絡應用的理想選擇。

Model

HT3316GX-GC8-TF4

Fixed ports

4*1G/2.5G/10G SFP+ slots,16*1G SFP ports,8*1G SFP/RJ45 COMBO ports

Management port

1*Console

Switching capacity

128Gbps

Packet forwarding

rate

95Mpps

MAC address table

16K

Buffer

12M bit

Port aggregation

Support gigabit port, 2.5GE and 10GE port link aggregation

Support static and dynamic aggregation

Port features

Support IEEE802.3x flow control, Port traffic statistics, port isolation

Support network storm suppression based on port bandwidth percentage


VLAN


Support access, trunk and hybrid mode


VLAN Classification

Mac Based VLAN IP Based VLAN

Protocal Based VLAN


QinQ

Basic QinQ (Port-based QinQ) Flexible Q in Q(VLAN-based QinQ) QinQ(Flow-based QinQ)

Port mirroring

Many to one (Port Mirroring)

Layer 2 ring network

protocol

Support STP、RSTP、MSTP

Support G.8032 ERPS protocol,single ring, sub ring and other ring

DHCP

DHCP Client

DHCP Snooping

ARP

ARP table aging

IPv4

Static routing


ECMP

ECMP;

Support the configuration of ECMP Max next-hop; Support capacity balanced configuration;

Route policy

IPv4 prefix-list

VRRP

virtual router redundancy protocol

Multicast

IGMP V1,V2,V3

IGMP snooping

IP routing protocol

RIPv1/v2; OSPFv2; BGP4;

BGP supports Routing recursive ECMP;

Support to view the number of neighbors and up/down state

IS-ISv4


ACL

IP Standard ACL MAC extend ACL IP extend ACL



QoS

QoS Class, Remarking

Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit

Policy-based QoS


IP routing protocol

RIPv1/v2; OSPFv2; BGP4;

BGP supports Routing recursive ECMP;

Support to view the number of neighbors and up/down state

IS-ISv4

Security

Support Dot1x,port authentication,mac authentication,RADIUS service Support port-security

Support ip source guard,IP/Port/MAC binding

Support arp-check and ARP packet filtering for illegal users

Support port isolation







Management and maintenance

Support LLDP

Support user management and login authentication Support SNMPV1/V2C/V3

Support web management,HTTP1.1,HTTPS Support Syslog

Support RMON (Remote Monitoring)alarm, event and history record Support NTP

Support temperature monitoring Support Ping、Tracert

Support optical transceiver DDM function Support TFTP Client

Support Telnet Server Support SSH Server Support IPv6 Management

Support FTP,TFTP,WEB upgrading


Dimension(mm)


440*245*44mm


Power supply

VAC input

Rated voltage range:100-240V Frequency:50/60Hz

Fan

Support fan speed control

Consumption

≤25W

Power surge

protection

6KV, IEC 61000-4-5 Level X(8/20us)

Ethernet ports surge

protection

4KV, IEC 61000-4-5 Level 4(10/700us)

Working temperature

0℃-50℃

Humidity

Working humidity:10%-90%RH Storage humidity:5%-95%RH

Warranty

Two years
