1.25G光模塊
1.25G SFP光模塊
•符合 IEEE 802.3z 1000BASE-SX、1000BASE-LX 和1000BASE-ZX
•支持1.25Gbps的數據傳輸
•符合SFP MAS協議，可熱插拔
•支持550m~120km不同傳輸距離
•具備數據診斷功能(DDM)
•單電源3.3V供電
•滿足EMI、ESD要求
•符合RoHS標準
•Class1/1M規范產品，符合IEC60825-1要求
•符合Telcordia(Bellcore)GR-468-CORE可靠性要求
•工作溫度范圍：商業級：0~70度
工業級：-40~85度
  • 產品描述
  • 產品參數
  • 應用方案
  • 資料下載
  • 關聯產品

概述：

HOTCOM 1.25Gb/s SFP系列光模塊包括 SFP SX、SFP LX、SFP EX、SFP ZX、SFP BIDI 等系列產品。提供商業級溫度、擴展級溫度、工業級溫度供客戶選擇使用。滿足550m~160km的超長數據傳輸距離。主要應用于千兆以太網、交換機接口、路由器/服務器接口以及其它光纖鏈路等環境。光模塊可以適配華為、華三、思科、阿爾卡特朗訊、Juniper、愛立信、惠普等設備。


產品技術規格：

Technical specifications

General
Operating Temperature：0~70˚C
Storage Temperature： -40～85˚C
Relative Humidity： 30～80%
Power Supply Voltage：DC 3.3V
Performance
Fiber Type：SMF, Single fiber, 9/125um
Connector：LC
Date Rate：1250 Mbps
Connector Quantity： 1
Distance： 0~20km
Wavelength：1310nm/1550nm
TX Power： -9~-1dBm
RX Sens(Max.)： -21dBm


訂貨信息：


產品型號

產品描述

速率

傳輸距離

波長

激光器

接收器

功耗

溫度

規格書

HT201-24D083M0.5D-I

SFP SX

1.25Gb/s

550m

850nm

VCSEL

PIN

<0.9W

-40~+85°C


HT201-24D083M0.5D

SFP SX

1.25Gb/s

550m

850nm

VCSEL

PIN

<0.85W

0~+70°C


HT201-24D033M02D-I

SFP SX

1.25Gb/s

2km

1310nm

FP

PIN

<0.9W

-40~+85°C


HT201-24D033M0.5D-I

SFP SX

1.25Gb/s

2km

1310nm

FP

PIN

<0.85W

0~+70°C


HT201-24D033S10D-I

SFP LX

1.25Gb/s

10km

1310nm

FP

PIN

<0.9W

-40~+85°C


HT201-24D033S10D

SFP LX

1.25Gb/s

10km

1310nm

FP

PIN

<0.85W

0~+70°C


HT201-24D033S40D-I

SFP EX

1.25Gb/s

40km

1310nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24D033S40D

SFP EX

1.25Gb/s

40km

1310nm

DFB

PIN

<0.95W

0~+70°C


HT201-24D053S40D-I

SFP EX

1.25Gb/s

40km

1550nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24D053S40D

SFP EX

1.25Gb/s

40km

1550nm

DFB

PIN

<0.95W

0~+70°C


HT201-24D053S80D-I

SFP ZX

1.25Gb/s

80km

1550nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24D053S80D

SFP ZX

1.25Gb/s

80km

1550nm

DFB

PIN

<0.95W

0~+70°C


HT201-24D053S100D-I

SFP ZX

1.25Gb/s

100km

1550nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24D053S100D

SFP ZX

1.25Gb/s

100km

1550nm

DFB

PIN

<0.95W

0~+70°C


HT201-24D053S120D-I

SFP ZX

1.25Gb/s

120km

1550nm

DFB

APD

<1.0W

-40~+85°C


HT201-24D053S120D

SFP ZX

1.25Gb/s

120km

1550nm

DFB

APD

<0.95W

0~+70°C


HT201-24D053S160D-I

SFP ZX

1.25Gb/s

160km

1550nm

DFB

APD

<1.0W

-40~+85°C


HT201-24D053S160D

SFP ZX

1.25Gb/s

160km

1550nm

DFB

APD

<0.95W

0~+70°C


HT201-24-35S03D-I

BIDI SFP

1.25Gb/s

3km

1310nm

FP

PIN

<0.95W

-40~+85°C


HT201-24-53S03D-I

BIDI SFP

1.25Gb/s

3km

1550nm

FP

PIN

<0.95W

-40~+85°C


HT201-24-35S03D

BIDI SFP

1.25Gb/s

3km

1310nm

FP

PIN

<0.86W

0~+70°C


HT201-24-53S03D

BIDI SFP

1.25Gb/s

3km

1550nm

FP

PIN

<0.86W

0~+70°C


HT201-24-35S10D-I

BIDI SFP

1.25Gb/s

10km

1310nm

FP

PIN

<0.95W

-40~+85°C


HT201-24-53S10D-I

BIDI SFP

1.25Gb/s

10km

1550nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-35S10D

BIDI SFP

1.25Gb/s

10km

1310nm

FP

PIN

<0.86W

0~+70°C


HT201-24-53S10D

BIDI SFP

1.25Gb/s

10km

1550nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-34S20D-I

BIDI SFP

1.25Gb/s

20km

1310nm

FP

PIN

<0.95W

-40~+85°C


HT201-24-43S20D-I

BIDI SFP

1.25Gb/s

20km

1490nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-34S20D

BIDI SFP

1.25Gb/s

20km

1310nm

FP

PIN

<0.86W

0~+70°C


HT201-24-43S20D

BIDI SFP

1.25Gb/s

20km

1490nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-35S20D-I

BIDI SFP

1.25Gb/s

20km

1310nm

FP

PIN

<0.95W

-40~+85°C


HT201-24-53S20D-I

BIDI SFP

1.25Gb/s

20km

1550nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-35S20D

BIDI SFP

1.25Gb/s

20km

1310nm

FP

PIN

<0.86W

0~+70°C


HT201-24-53S20D

BIDI SFP

1.25Gb/s

20km

1550nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-34S40D-I

BIDI SFP

1.25Gb/s

40km

1310nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-43S40D-I

BIDI SFP

1.25Gb/s

40km

1490nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-34S40D

BIDI SFP

1.25Gb/s

40km

1310nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-43S40D

BIDI SFP

1.25Gb/s

40km

1490nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-35S40D-I

BIDI SFP

1.25Gb/s

40km

1310nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-53S40D-I

BIDI SFP

1.25Gb/s

40km

1550nm

DFB

PIN

<0.95W

-40~+85°C


HT201-24-35S40D

BIDI SFP

1.25Gb/s

40km

1310nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-53S40D

BIDI SFP

1.25Gb/s

40km

1550nm

DFB

PIN

<0.86W

0~+70°C


HT201-24-34S60D-I

BIDI SFP

1.25Gb/s

60km

1310nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-43S60D-I

BIDI SFP

1.25Gb/s

60km

1490nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-34S60D

BIDI SFP

1.25Gb/s

60km

1310nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-43S60D

BIDI SFP

1.25Gb/s

60km

1490nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-45S80D-I

BIDI SFP

1.25Gb/s

80km

1490nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-54S80D-I

BIDI SFP

1.25Gb/s

80km

1550nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-45S80D

BIDI SFP

1.25Gb/s

80km

1490nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-54S80D

BIDI SFP

1.25Gb/s

80km

1550nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-45S100D-I

BIDI SFP

1.25Gb/s

100km

1490nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-54S100D-I

BIDI SFP

1.25Gb/s

100km

1550nm

DFB

PIN

<1.0W

-40~+85°C


HT201-24-45S100D

BIDI SFP

1.25Gb/s

100km

1490nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-54S100D

BIDI SFP

1.25Gb/s

100km

1550nm

DFB

PIN

<0.95W

0~+70°C


HT201-24-45S120D-I

BIDI SFP

1.25Gb/s

120km

1490nm

DFB

APD

<1.0W

-40~+85°C


HT201-24-54S120D-I

BIDI SFP

1.25Gb/s

120km

1550nm

DFB

APD

<1.0W

-40~+85°C


HT201-24-45S120D

BIDI SFP

1.25Gb/s

120km

1490nm

DFB

APD

<0.95W

0~+70°C


HT201-24-54S120D

BIDI SFP

1.25Gb/s

120km

1550nm

DFB

APD

<0.95W

0~+70°C


HT201-24-45S160D-I

BIDI SFP

1.25Gb/s

160km

1490nm

DFB

APD

<1.0W

-40~+85°C


HT201-24-54S160D-I

BIDI SFP

1.25Gb/s

160km

1550nm

DFB

APD

<1.0W

-40~+85°C


HT201-24-45S160D

BIDI SFP

1.25Gb/s

160km

1490nm

DFB

APD

<0.95W

0~+70°C


HT201-24-54S160D

BIDI SFP

1.25Gb/s

160km

1550nm

DFB

APD

<0.95W

0~+70°C


•千兆以太網
•光纖通道
•開關切換界面
•交換背板應用
•路由器/服務器接口
•其他光傳輸系統

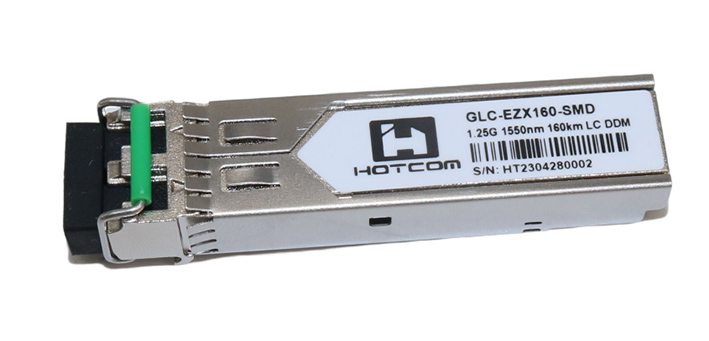

1.25Gbps 1550nm 160KM LC Single Mode Dual Fiber SFP Transceiver Optical Module


1.25Gb/s BiDi SFP 160km Optical Transceiver 規格書


1.25G SM 1550nm EZX 160km LC


Q&A:

What is the difference between LH and LX modules?

What does it infer if a modules says like "Cisco 1000BASE-LX/LH SFP?
Answer:
Generally a module is either made for single mode (More distance) / multimode (short distance). But this module can be used for both Single mode and Multimode.
If used with SM fiber it can go up to 10Km
It used with MM it can go up to 550meters (depend on what kind of MM fiber you have) You need a mode conditioning patch chord too with legacy MM I think OM1 and 2.
Long Haul ( LH ) denotes longer distances while Long Wavelength ( LX ) denotes less energy which is obviously shorter distance. Why does Cisco use both LX and LH for certain SFP modules.
Read this link and don't worry about LX/LH (You will get the distance mentioned above depending on the type of fiber you are using)
http://en.wikipedia.org/wiki/Gigabit_Ethernet
Before it was standardized 1000BASE-LX10 was essentially already in wide spread use by many vendors as a proprietary extension called either 1000BASE-LX/LH or 1000BASE-LH.
