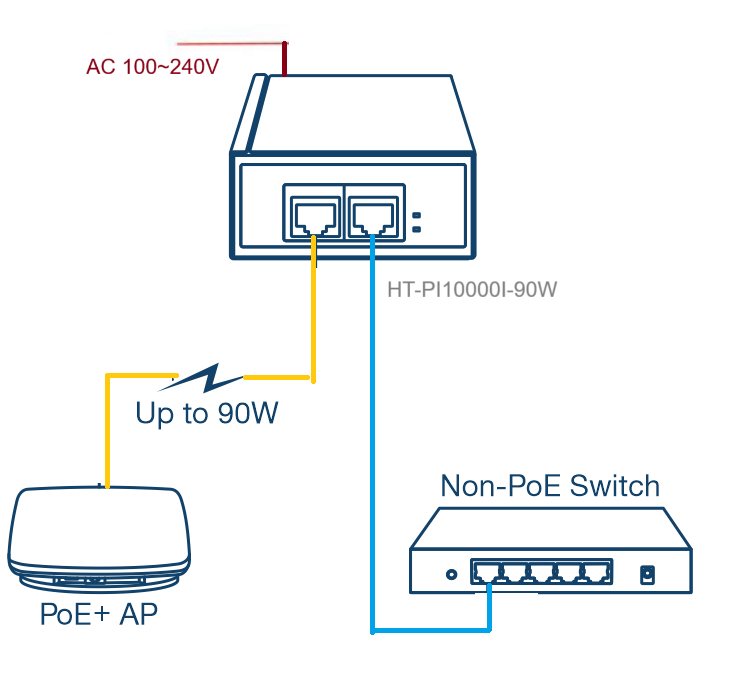

HT-PI10000I-90W is a reliable IP40 rated Industrial 10G 802.3at/bt/ PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the HT-PI10000I-90W industrial PoE injector to a non-PoE 10G/1Gt switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The HT-PI10000I-90W industrial PoE injector supplies power to a PoE, PoE+, UPoE, or PoE++ (up to 90W) device. This industrial PoE injector features DC power inputs with overload current protection. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
Technical specifications
|
Hardware Specifications
|
|
Model
|
HT-PI10000I-90W
|
|
Port
|
1*RJ45*10/100/1000/10000M Data IN
1*RJ45*10/100/1000/10000M PoE OUT
1* DC IN (2P) removable terminal block
Grounding point
|
|
Standard
|
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE802.3ae
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
|
|
DC IN
|
DC 48-57V MAX 10A
|
|
Boost efficiency
|
85%-97%(12-57V)
|
|
PoE Output
|
DC37-57V 1.73A
|
|
Poe Out Watt
|
MAX 90W
|
|
Data Pin
|
12345678
|
|
PoE Out
|
1236+ 4578-
|
|
Transmission
|
10Base-T: two pairs of Cat3 or above UTP/STP(≤250m)
100Base-TX: two pairs of Cat5 or above UTP/STP(≤150m)
1000Base-T: for pairs of Cat5e or above UTP/STP(≤100m)
10Base-T: for pairs of Cat6 or above UTP/STP(≤100m)
|
|
Features
|
Plug and play without more configuration management
Under-voltage, over-voltage, Over-current and short circuit protection
Reliability：MTBF＞100k hours
|
|
Lightning Protection
|
6KV 8/20us；6KV ESD protection
|
|
Protect grade
|
IP40
|
|
Environment Specifications
|
|
Operation Environment
|
Operation Temperature：-40℃～80℃
Storage Temperature：-60℃～90℃
|
|
Operation Humidity
|
10%～90% RH Non coagulation
|
|
Storage Humidity
|
5%～90% RH Non coagulation
|
|
Product size
|
105mm*90mm*30mm
|
|
Others
|
|
Weight
|
0.37kg
|
|
Warranty
|
3 years
|
